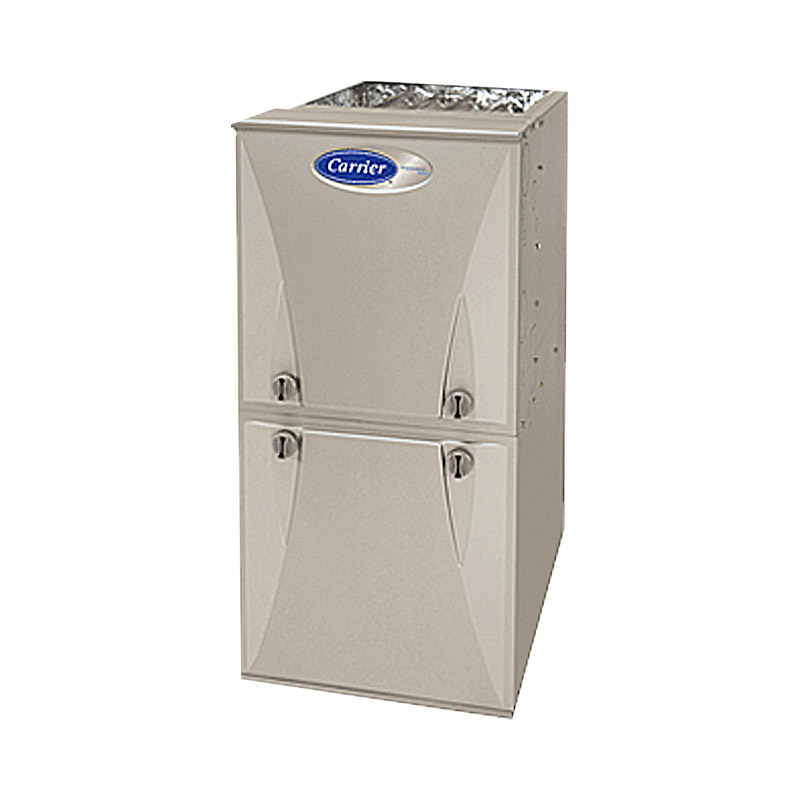

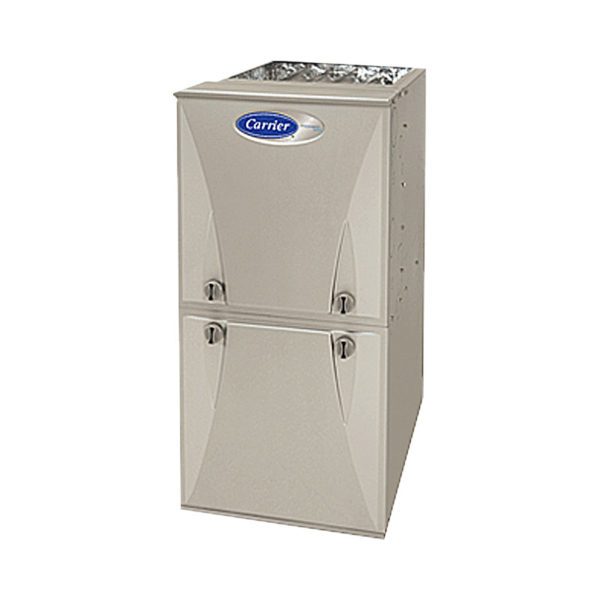

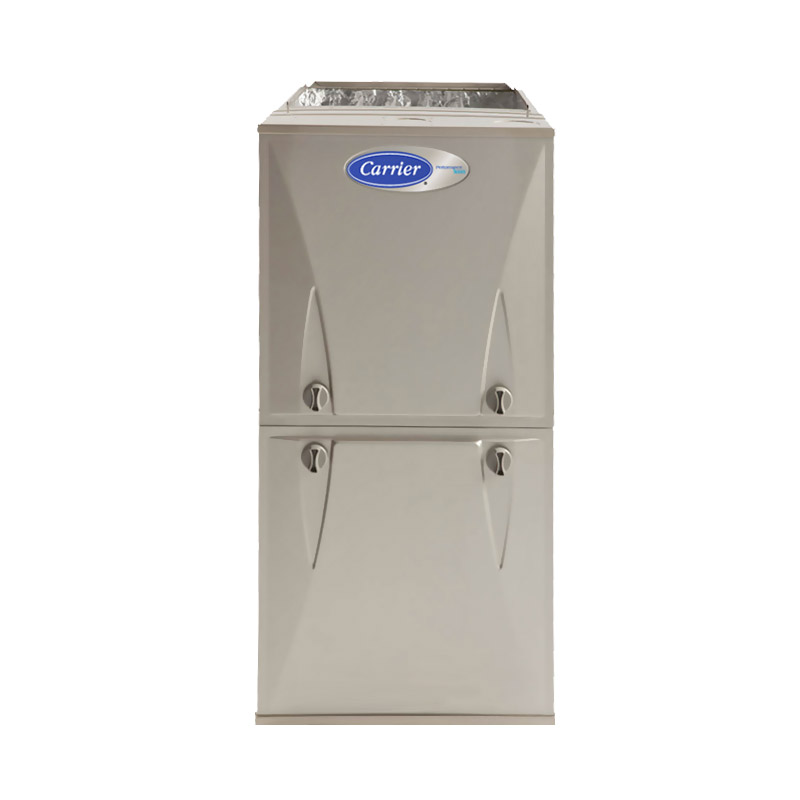

PERFORMANCE 96 GAS FURNACE 59TP6
Supported by the Performance Edge® thermostat and a variable-speed blower motor, this furnace will run in low stage up to 90% of the time. Longer, low-stage run times give you better energy efficiency, better temperature control and increased comfort. It also assures you quieter performance.
Variable-speed blower operation also aids other system components and can help make your air conditioning system more efficient and improve summer dehumidification.
Additionally, SmartEvap™ technology which periodically stops the fan in “Constant ON” mode, gives cooling condensation time to drain away to prevent rehumidification. SmartEvap can reduce humidity by up to 10%.
- Up to 96.7% AFUE heating efficiency
- Two-stages of heat for economical operation
- Multi-speed, high-efficiency, ECM blower motor enhances comfort
- Ideal Humidity System® technology capable to aid heat pump or air conditioner summer dehumidification
- SmartEvap™ technology works in concert with your cooling system to aid summer dehumidification
- ComfortFan™ technology allows fan-speed choices in “Constant ON” mode
- Comfort Heat Technology® feature intelligently stages heating cycles to reduce temperature swings and improve efficiency
- Fully insulated cabinet
- Advanced temperature control
- Includes air filter cabinet
- 10-year parts limited warranty
- Lifetime heat exchanger limited warranty
EFFICIENCY
- Up to 96.7% AFUE
- Select sizes meet ENERGY STAR® qualifications
PERFORMANCE
- Low stage operation up to 90% of time for quiet, energy-efficient operation
- Allows choices of “constant ON” fan speed operation1
- Hybrid Heat® compatible
- Year-round humidity management when installed as part of complete Performance system with humidifier
- Can help boost cooling SEER efficiency when matched with appropriate cooling system components
TECHNOLOGY
- Two-stage gas valve
- Variable-speed, ECM blower motor
- Pilot-free, hot surface PowerHeatTM ignition
- Two-speed inducer motor
- Aluminized steel clamshell-style primary heat exchanger
- Stainless steel fin-and-tube design secondary heat exchanger
- Sound reduction: fully insulated cabinet and QuieTech™ noise reduction
- Recommended controls: Performance™ Edge® relative humidity or ComfortZoneTM II thermostats
CAPACITIES
- 40,000-120,000 Btu/h
INSTALLATION
- Flexible installation: upflow, downflow or horizontal
- Versatile venting for tight-fit applications
REQUIREMENTS
- 115 V
- .5″ gas connection
- Convertible to Liquid Propane (LP)
AESTHETICS
- 20-gauge, galvanized steel with appliance finish
- Baked on urethane base coat and polyester top coat paint in taupe metallic
- Dimensions in upflow position: 35″H x width varies by size: 14.2-24.5″ x 30″D
